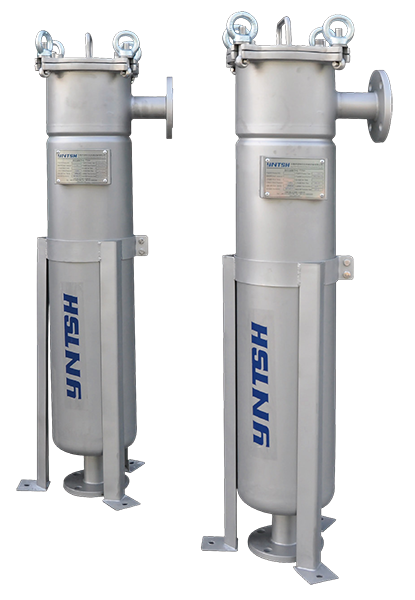

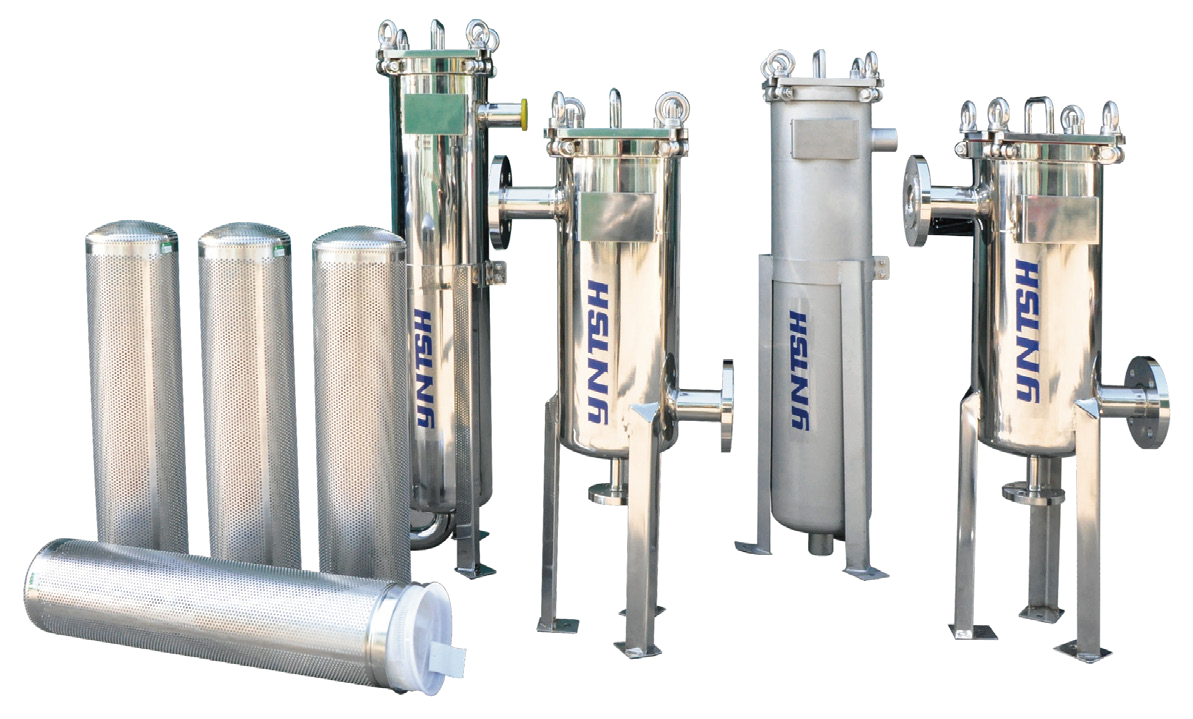

▍INOCO SGD-II Side-entry Single Bag Filter
Side-entry single bag filters are the most commonly used type of filter equipment. INOCO's standard side-entry bag filters utilize standard model components throughout. These filters can be manufactured on a standard assembly line or to the pressure vessel standard GB 150. Side-entry single bag filters are secured with standard eyebolts and feature a standard DN50 flanged connection. It accommodates the four common filter bag sizes: #1, #2, #3, and #4.
Technical Parameters
Specifications
|
Filter Housing Material
|
304(Standard), 2205, 2507, 904L
|
|
|
Titanium, Hastelloy
|
|
|
PTFE Lining, PTFE Coating
|
|
Sealing Ring Material
|
NBR(Nitrile Rubber)(Standard)
|
|
|
NBR(Nitrile Rubber)(FDA Certified)
|
|
|
EPDM(Ethylene Propylene Diene Monomer Rubber)
|
|
|
FKM(Fluoroelastomer/Viton]
|
|
|
PTFE Encapsulated FKM
|
|
Filter Bag Material
|
PP(Polypropylene)(Standard)
|
|
Filter Bag Type
|
Single Bag Filter: 1#,2#,3#,4#
|
|
|
Multi-Bag Filter: 1#, 2#
|
|
Maximum Operating Pressure
|
1.0Mpa(150PSI)(10.34bar)
|
|
Design Temperature Range(Design temperature does not consider flter bags and gaskets)
|
Carbon Steel: -6 ~ 250℃
|
|
Stainless Steel: -28 ~ 298℃
|
|
Parts in Contact with Filter Media
|
Carbon Steel Filter: Carbon Steel
|
|
|
Stainless Steel Filter: Stainless Steel
|
|
Inlet/Outlet Connection
|
DN50 Flange (Standard)
|
|
Surface Treatment
|
Carbon Steel: Outer surface sandblasted and painted
|
|
|
Stainless Steel: Sandblasted (Standard), Pickled, Polished
|
|
Certification(Only for #1, #2 Filter Bag Filters)
|
GB150 "TS" ASME "U" or "UM" Stamp
|
|
Filter Bag Seal
|
Manual, No Manual Pressurization Required (Standard)
|
|
Opening Method
|
Quick Opening Bolts
|
Features
Technical Parameters
Reference HG21637-91, GB150-2011 Design, Manufacturing, and Acceptance
Flange Standard: HG, GB, SH, HGJ, JB, ANSI, JIS
Connection Type: Threaded, Clamp, Flanged
Nominal Diameter: 1~3”
Drain Size: 1/4”
Filter Bag Type: 1#, 2#, 3#, 4#
Filtration Accuracy: 0.5um-800um
Design Pressure: 1.0MPa
Design Temperature: 90℃(using PP filter bag) 130℃(using PE filter bag)
240℃(using PTFE filter bag)
Surface Treatment
Glass bead blasting (standard); Polishing; Sanitary grade polishing
Materials
Housing Material: 20#, 304, 316L, 2205, 2507, 钛材, 衬里
Sealing Gasket: Silicone, Nitrile Rubber, PTFE Rubber
Filter Bag Material: Polyester, Polypropylene, Nylon, PTFE, Glass Fiber

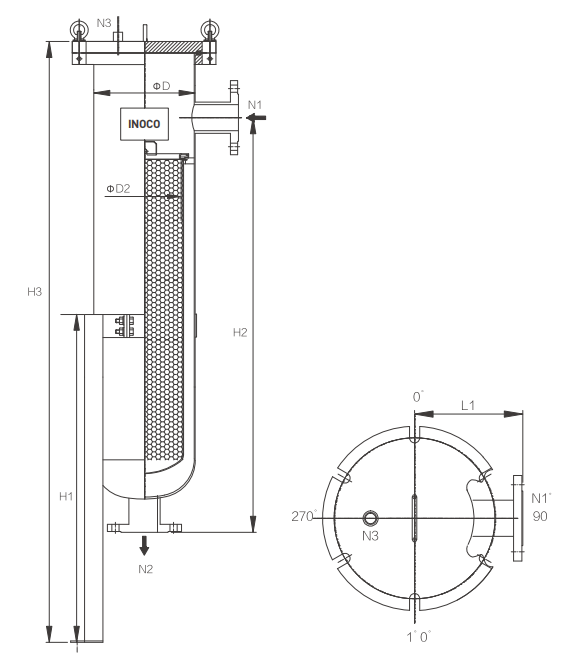

Selection Guide
|
Model
|
Max Flow Rate
|
Nominal Diameter DN
|
Volume
|
Filtration Area
|
D
|
D2
|
H1
|
H2
|
H3
|
|
SGD-1-1
|
15
|
1"~4"
|
8.0
|
0.2
|
200
|
170
|
500
|
546
|
646
|
|
SGD-1-2
|
30
|
1"~4"
|
17.5
|
0.45
|
200
|
170
|
700
|
886
|
986
|
|
SGD-1-3
|
3.5
|
3/4"~2"
|
2.5
|
0.05
|
114
|
95
|
500
|
296
|
383
|
|
SGD-1-4
|
7.5
|
3/4"~2"
|
4.0
|
0.1
|
114
|
95
|
350
|
446
|
533
|
