Filter Elements

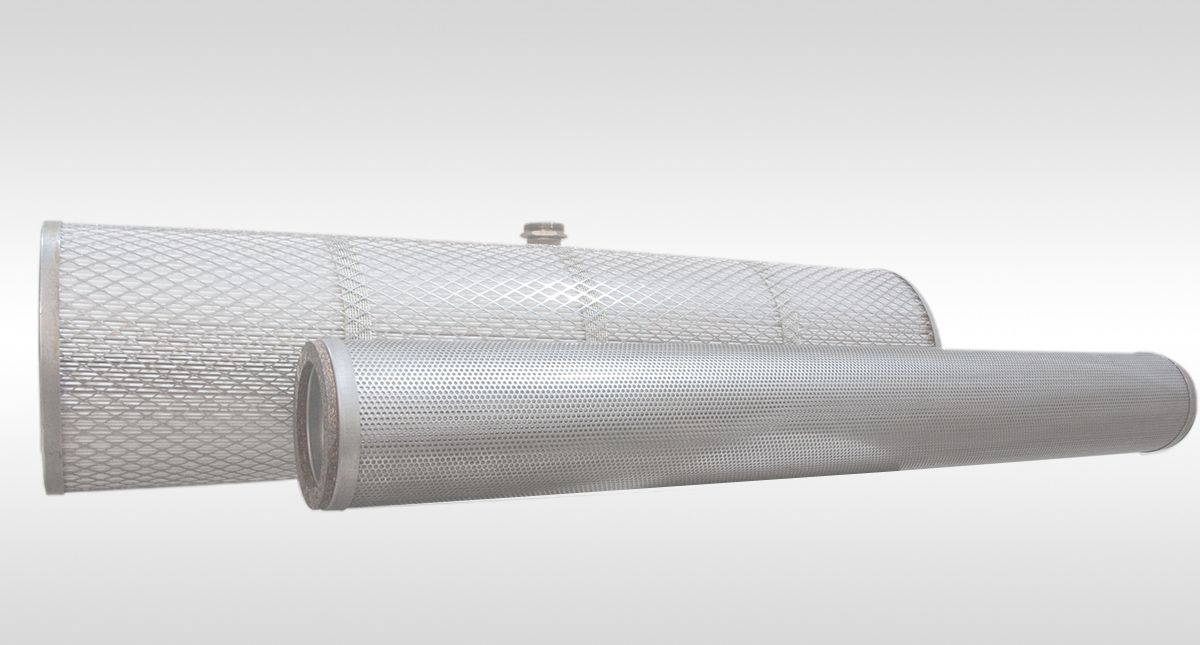

Gas-Solid Separation Filter Element
Product Introduction

Gas-solid separation filter element is a core component of dry gas filters, used for removing particulate impurities from gases such as natural gas, petroleum gas, hydrogen, and petrochemical plant dry gas. The PF series filter elements utilize multi-layer pleated technology, providing a filtration area four times or more than that of ordinary cylindrical filter elements.


Product Overview
Product Structure
Specifications: Outer diameter 68, 90, 110, 150mm, etc.
Length: 300mm ~ 2000mm.
Filter Media: Plant fiber, Glass fiber, Polyester fiber, Metal fiber.
Filter Element Core/Cage: Stainless steel or other materials.

Performance Parameters
Initial Pressure Drop: ≤ 0.012MPa.
Filter Element Structural Strength: > 1MPa.
Design Temperature Range: ≦150 ℃.
Filtration Accuracy: 0.3, 0.5, 1, 3, 5, 10 μm.

Product Advantages
1.High anti-damage strength material.
2.High corrosion-resistant material.
3.Multi-layer structure.
4.High flow rate.
5.High dirt holding capacity, replacement cycle over 12 months.
Solution
