Filter Elements

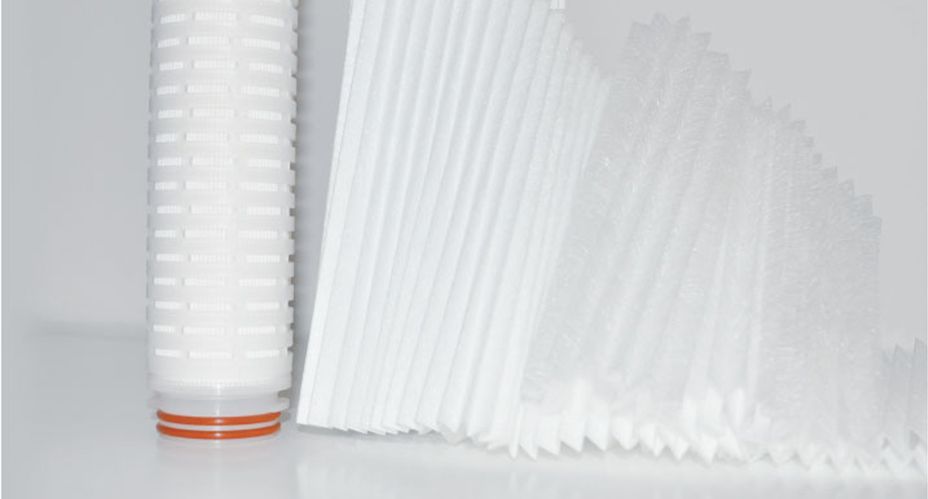

Polyethersulfone Pleated Membrane Filter Element
Product Introduction

MES series membrane material is composed of German polyethersulfone (PES) filter membrane and imported drainage layer, offering excellent heat resistance and chemical resistance.


Product Overview

Each filter element undergoes bubble point testing and bacterial challenge testing before leaving the factory to ensure 100% retention efficiency. The naturally hydrophilic PES material ensures high filtration flux for this filter element.

Applications
Sterilization of beverages, wine, draft beer, and other alcoholic beverages
Sterilization and filtration of water
End-of-line filtration in food production


Filter Element Parameters

Material
Filter membrane Single-layer hydrophilic polyethersulfone membrane
Support Polypropylene
Shell Polypropylene
End Cap Polypropylene
O-ring Gasket EPDM/Fluorine Rubber/PTFE/Silicone Rubber
Sealing Technology Hot melt welding (no adhesive)
Connector Type 222、226
Size mm
Diameter 68、83、150
Length 250、500、750、1000、1500
Filtration area /68-10″ 0.6M2
Filtration accuracy 0.1、0.22、0.45、1.3、5、10
Forward withstand pressure difference 4.2Kg/23℃；1.5Kg/85℃；
Flow rate and pressure difference 10″
0.22μm ≥18L/Min ，0.21Bar
0.45μm ≥25L/Min ，0.21Bar
Bubble point /23 ℃ water
0.22μm ≥3400mbar
0.45μm ≥2300mbar
Sterilization cycle times
It can continuously withstand 30 times of hot water disinfection at 85℃ for 30 minutes
Solution
