Filter Elements

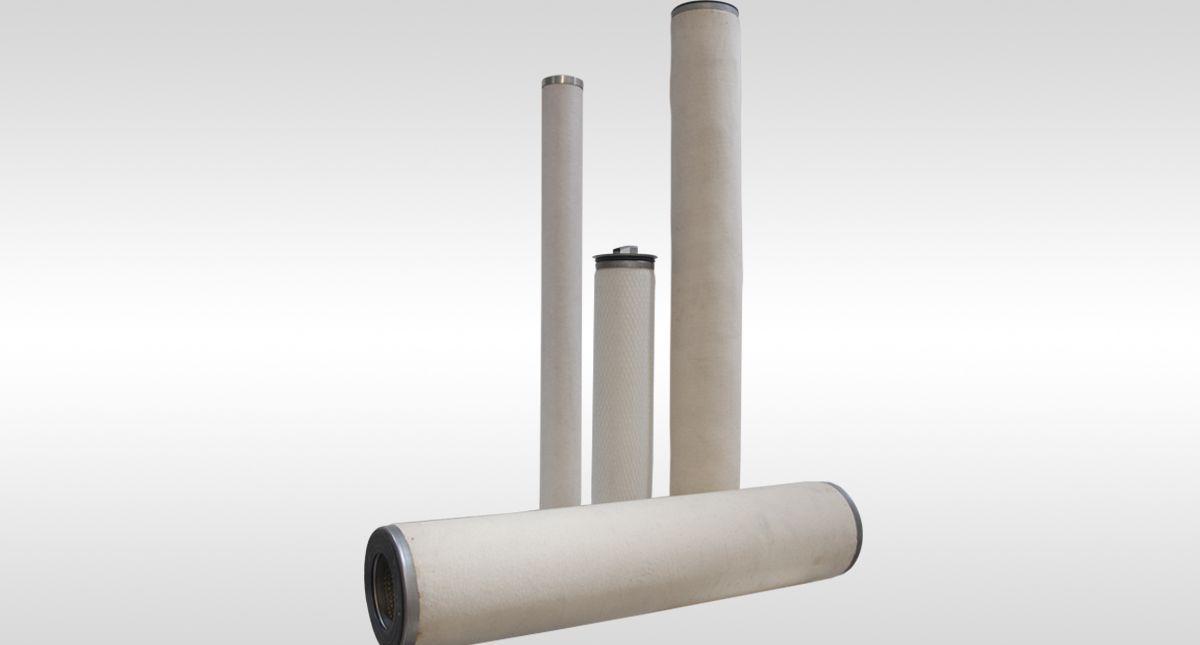

Gas-Liquid Separation Filter Element
Product Introduction

INOCO GF Series filter elements are made of high-density graded glass fiber and designed as an integral single-piece tube structure to reduce damage and leakage. The surface of the filter element is treated to be hydrophobic and oleophobic, which can meet various accuracy level requirements.


Product Overview
Product Structure
Specifications: Outer diameter 63, 86, 110, 140mm.
Length: 500, 920, 1000mm.
Filter Element Core/Cage: Stainless steel or other materials.

Performance Parameters
Initial Pressure Drop: ≤ 0.012MPa.
Allowable pressure difference of the filter element: 0.1MPa.
Filter Element Structural Strength: > 1Mpa.
Design Temperature Range: -40 ℃ ~150 ℃.
Filtration Accuracy: 0.1, 0.3, 0.5, 1, 3, 5, 10 μm.

Design Specifications
Filter element strength complies with ISO2941-83 standard.
The filtration accuracy of filter element complies with ISO19438-2003 standard.

Filter Element Material
Core/Cage(L)
304、316L
Filter material(L)
Chemical fiber/Glass fiber
Gas accuracy (μm)
0.1、0.25、1、2、3、5、10
Maximum operating temperature (℃)
85℃

Filter Element Parameters
Diameter (mm)
110、150
Length (mm)
510、920
