Filtration Equipment

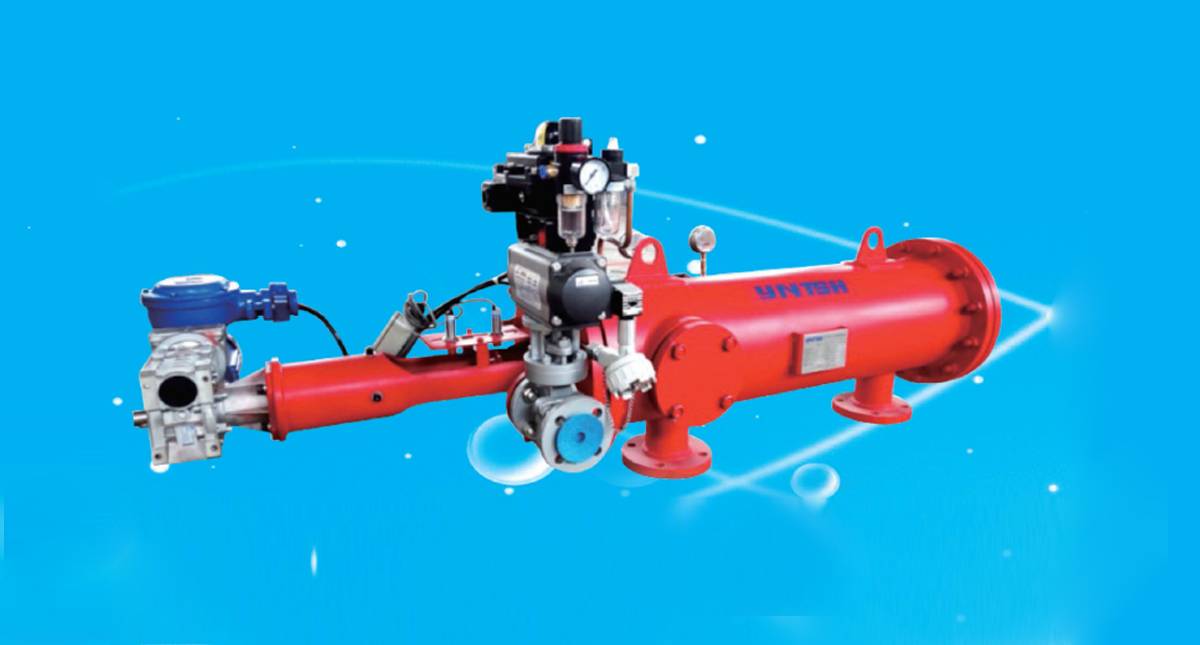

Scanning Automatic Self-cleaning Filter
Product Overview
XF D2 series self-cleaning filter has higher filtration precision and minimum cleaning water loss, it can provide the most security for industrial system.
Product Overview

Self-cleaning process

When the pressure difference between the inside and outside of filter mesh reaches the set default value or when the timed cleaning switch aches the set time,then system starts the cleaning process.

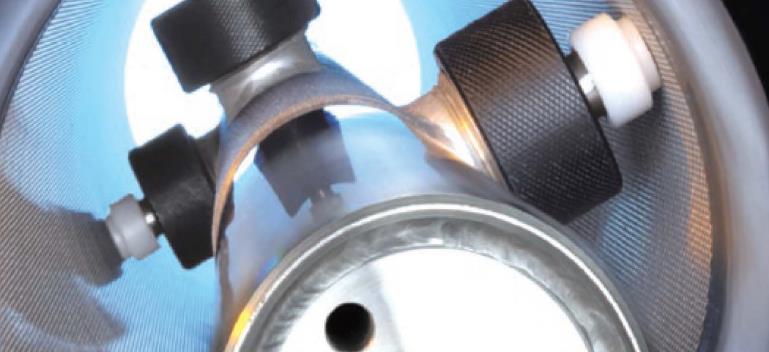

The whole cleaning process is completed by a sucking scanner, it makes a spiral scanning movement and absorbs the impurity on the surface of the mesh and discharges through a drain valve,the scanner is driven by a two-way rotation of the electric motor through a screw.

The opening of drain valve is controlled by a two-positon three-way solenoid valve, the whole process lasts about 35 seconds, in this process system keeps continuously flow.


Filter performance

Continuous water supply: the cleaning process needs little water,which is nearly 1% of filter's water output the flushing time is 15 ~60 seconds,the whole system has an uninterrupted water supply.

High filtration precision:the filtration precision can reach 20 microns,there are all kinds of precision filters can be chosen.

Large filtration area:the effective filtration area of standard mesh is 7~40 times of the inlet area.


Technical Parameters
Fast and efficient cleaning technology of continuously flow after filtration

Sucking scanning filter contains a unique multi-layers stainless steel meshes, the filtration precision can reach up to 10 microns; INOCO design team developed a most efective method to combine material strength, filtration capacity and cleaning eficiency efectively together by selecting mesh weaving method and structure mode, in order to achieve a more efficient filtration result s. This cutting-edge precision filter mesh ensures the filter cake can be cleaned quickly and thoro ughly . The water consumption of INOCO sucking scanning technology is less than 1 % of the total water which is the lowest emissions of all water rate among all self-cleaning mode.(the rate could be adjusted according to the specific application)



Internal Structure

Product Solution
Product Authentication
