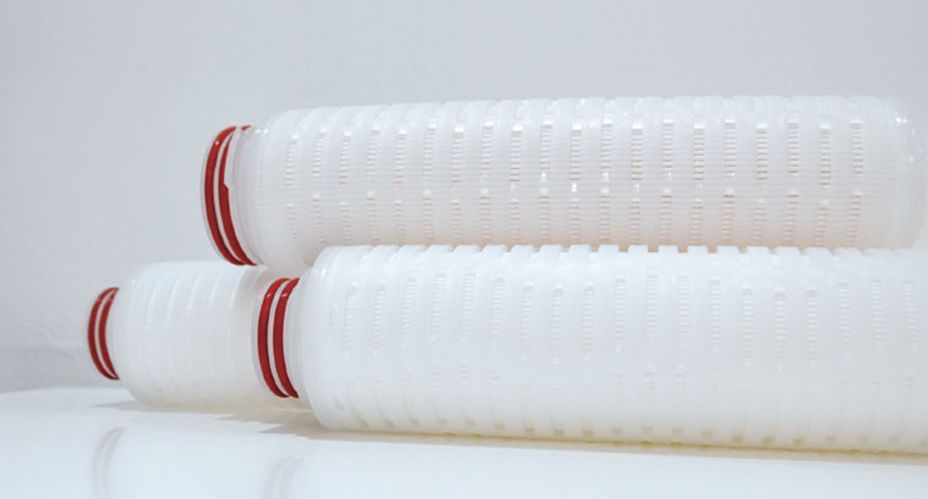

Polypropylene Pleated Filter Element
Product Introduction

INOCO MMP-I series filter elements make high-precision and low-cost filtration a reality. Filtration media from the United States and Japan ensure very high retention efficiency. The characteristics of high flow rate and high dirt holding capacity make MMP series filter elements the most economical pre-filter elements, widely applied in various fields such as pharmaceuticals, electronics, chemicals, food and beverages.

Product Overview

Product Brief
MMP-I Economical High Precision Filter Element
MMP-II Long Life Polypropylene Filter Element
MMP-III Ultra High Dirt Holding Capacity Polypropylene Filter Element
MMP-IV Absolute Precision Polypropylene Filter Element


Filter Element Parameters

Material
Filter membrane
Polypropylene
Support Polypropylene
Shell Polypropylene
End Cap Polypropylene
O-ring Gasket EPDM/VITON/F4 surrounding/silica
Sealing Technology hot melt welding( no adhesive)
Connector Type 222、226
Size mm
Diameter 68、83、150
Length 250、500、750、1000、1500
Filtration area /68-10″ 0.6M2
Filtration accuracy 0.1、0.22、0.45、1.3、5、10
Forward withstand pressure difference 4.2Kg/23℃;1.5Kg/85℃;
Flow rate and pressure difference 10″
0.22μm ≥18L/Min ,0.21Bar
0.45μm ≥25L/Min ,0.21Bar
