Filter Elements

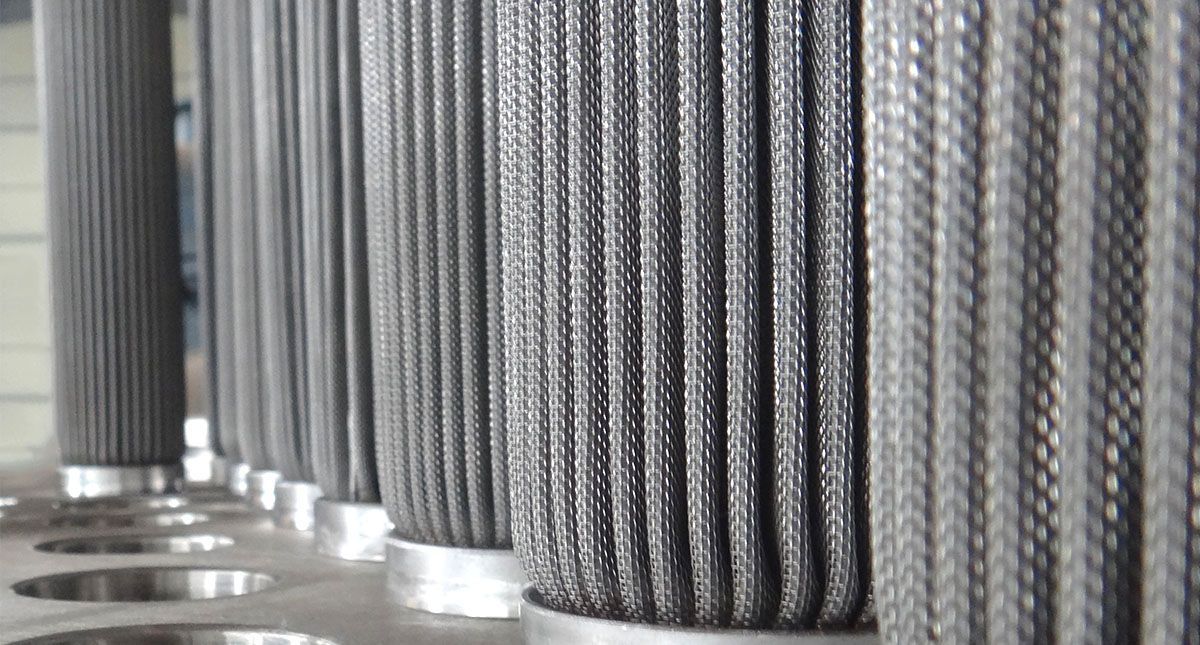

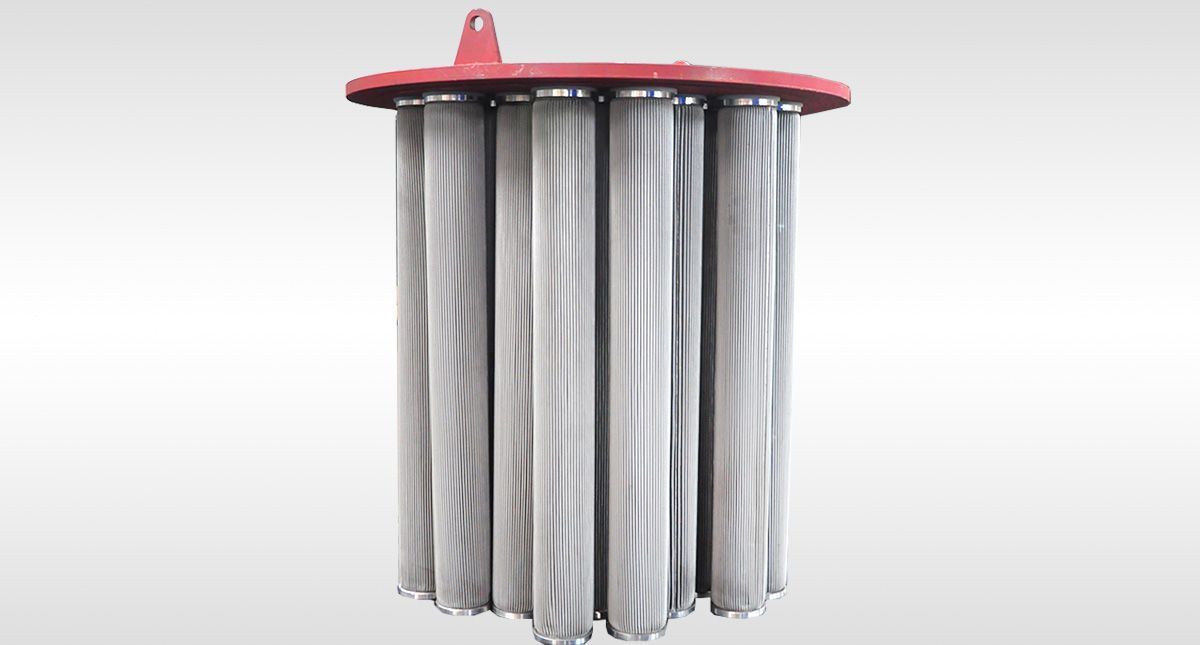

Stainless Steel Pleated Filter Element
Product Introduction
INOCO SSZ series pleated filter elements are welded from stainless steel woven mesh or stainless steel fiber sintered felt, featuring extremely high porosity. With excellent mechanical performance, high/low temperature resistance, and chemical stability, they are suitable for high flow rate filtration, steam filtration, various high/low temperature gases and liquids, and pre-filtration of high-precision highly corrosive fluids. They can be repeatedly cleaned, backwashed, and backblown.
Product Overview

Pleated process, high capacity, over 4 times the area of ordinary cylindrical filter elements.
It can withstand high reverse flow.
It can be repeatedly cleaned.
It contains no additives and complies with GMP standards.

Model Specifications

Size
Diameter(mm)
Length(mm)
Filtration Area(㎡)
SSZ-65/250
65
250
0.135
SSZ-65/500
65
500
0.38
SSZ-65/750
65
750
0.61
SSZ-65/500
86
500
0.5
SSZ-100/800
100
800
1.0
SSZ-60/1000
60
1000
0.81
SSZ-60/1200
60
1200
0.98
SSZ-60/1400
60
1400
1.1

Flow Rate
Unit based on water, 10″ element, pressure drop of 70mbar.

Size
2.0μm
5.0μm
10μm
20μm
40μm
75μm
100μm
120μm-840μm
GPM
1.2
4.5
8.0
12
16
＞18
＞18
＞18
LPM
4.54
17.03
30.28
45.42
60.56
＞68.13
＞68.13
＞68.13

The following table represents typical water flow at a one psi (69 mbar) pressure differential across a single 10 inch pleated cartridge element. The test fluid is water at ambient temperature. Extrapolation for housings with multiple elements and higher pressure drops is acceptable, but as flows increase the pressure drop of the housing becomes more apparent. For 10 micron and above, the recommended maximum flow rate per 10” is 7 –8 gpm for maximum service life.

Pressure
The special design enables the filter element to withstand operating pressures up to 400 kg and a back pressure differencel of 30 kg.

Accuracy
Absolute accuracy: 3-200 μm; measured in liquid units
