Multi-media filter is a process in which one or several filter media are used to pass water with high turbidity through a certain thickness of granular or non-granular materials under a certain pressure, thereby effectively removing suspended impurities and clarifying the water. The filter materials include quartz sand, anthracite, manganese sand, etc., which are mainly used for water treatment to remove turbidity, soften water, pre-treatment of pure water, etc. The turbidity of the effluent can reach below 3 degrees.
- Product Overview

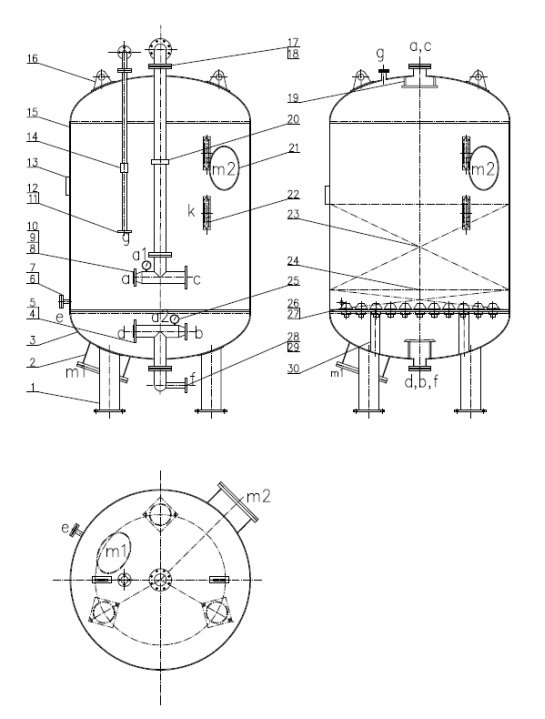

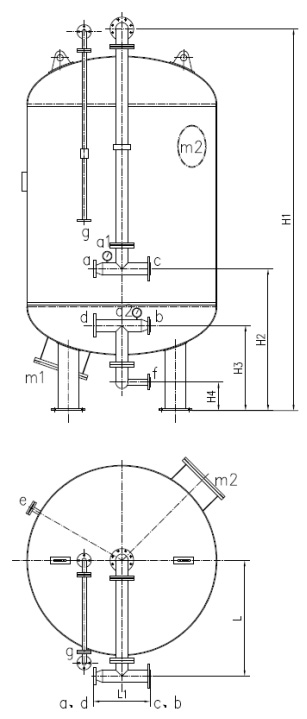

- Drawings and Data
- applied Range
- Product Configuration
Multi-media filter is a process in which one or several filter media are used to pass water with high turbidity through a certain thickness of granular or non-granular materials under a certain pressure, thereby effectively removing suspended impurities and clarifying the water. The filter materials include quartz sand, anthracite, manganese sand, etc., which are mainly used for water treatment to remove turbidity, soften water, pre-treatment of pure water, etc. The turbidity of the effluent can reach below 3 degrees.
Technical Parameter
|
Body Dia |
|
600 |
800 |
1000 |
1200 |
1400 |
1600 |
1800 |
2000 |
2200 |
2400 |
2600 |
2800 |
3000 |
3200 |
|
Design Flow Rate m/h |
single-layer media |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
|
double-layer media |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
|
|
Design Flow Capacity m³/h |
single-layer media |
2.5 |
4 |
6.5 |
9 |
12.5 |
16 |
20.5 |
25 |
30.5 |
36 |
42.5 |
49 |
56.5 |
64.5 |
|
double-layer media |
3 |
5 |
8 |
11.5 |
15 |
20 |
25 |
31.5 |
38 |
45 |
53 |
61.5 |
70 |
80 |
|
|
Shell Thickness mm |
6 |
6 |
8 |
8 |
8 |
8 |
8 |
10 |
10 |
10 |
10 |
10 |
12 |
12 |
|
|
Quartz Sand Filter |
Quartz Sand Filter Media Weight (T)Height (mm) |
0.5 |
0.9 |
1.7 |
2.4 |
3.3 |
4.3 |
5.4 |
6.6 |
8 |
9.5 |
11.2 |
13 |
14.8 |
16.8 |
|
Manganese Sand Filter |
Manganese Sand Filter Media Weight (T)Height (mm) |
0.7 |
1.2 |
2.2 |
3.2 |
4.3 |
5.5 |
7.0 |
8.7 |
10.5 |
12.5 |
14.7 |
17 |
19.5 |
22.2 |
|
Multi-media Filter |
Quartz Sand Filter Media Weight (T)Height (mm) |
0.3 |
0.6 |
1.1 |
1.6 |
2.2 |
2.9 |
3.6 |
4.4 |
5.4 |
6.4 |
7.5 |
8.6 |
9.9 |
11.3 |
|
Anthracite Filter Media Weight (T)Height (mm) |
0.1 |
0.2 |
0.3 |
0.4 |
0.6 |
0.8 |
1.0 |
1.2 |
1.45 |
1.7 |
2.0 |
2.4 |
2.7 |
3.0 |
|
